Features
- Binning +/- 50k
- Dimmable
- Osram LEDs
- Effective heat dissipation
- Life > 60,000 hours
- Very flexible (bend radius > 1.2″)
Documents & Downloads
OrgaLED PCB Photon 1200

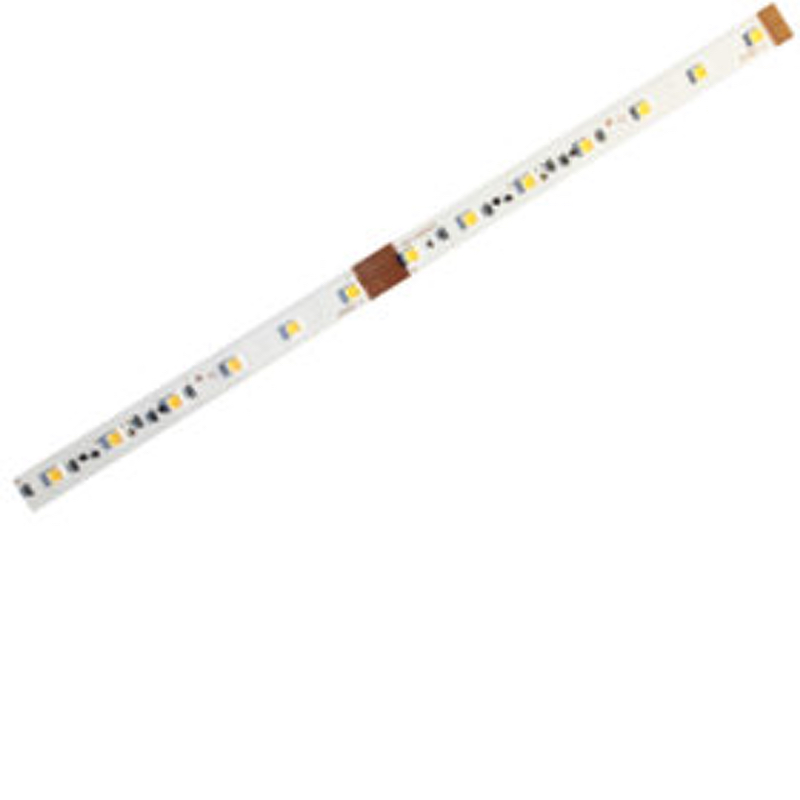

The OrgaLED® PCB Photon LED strip (IP20) is a high quality, flexible LED strip equipped with 3M double sided tape. Thanks to its small dimensions the PCB LED strip is ideal for usage in small (indoor) spaces. Available in the colors: 2000K, 2400K, 2700K, 3000K, 4000K and 6500K.
| Temperature | Color | Output | Wattage | Run Length | Dimension | Part Number |
|---|---|---|---|---|---|---|
| 2000K |  | 305.5 lm/ft | 3.2 W/ft | 29.5 ft | 0.31 x 0.05 in | 012147 |
| 2400K |  | 356.7 lm/ft | 3.2 W/ft | 29.5 ft | 0.31 x 0.05 in | 012148 |
| 2700K |  | 368.3 lm/ft | 2.7 W/ft | 29.5 ft | 0.31 x 0.05 in | 012149 |
| 3000K |  | 375 lm/ft | 2.7 W/ft | 29.5 ft | 0.31 x 0.05 in | 012150 |
| 4000K |  | 372.3 lm/ft | 2.4 W/ft | 29.5 ft | 0.31 x 0.05 in | 012151 |
| 6500K |  | 372.9 lm/ft | 2.4 W/ft | 29.5 ft | 0.31 x 0.05 in | 012152 |
OrgaLED PCB Photon 2000
| Temperature | Color | Output | Wattage | Run Length | Dimension | Part Number |
|---|---|---|---|---|---|---|
| 2000K | | 503 lm/ft | 5.5 W/ft | 14.8 ft | 0.31 x 0.05 in | 012153 |
| 2400K | | 609.8 lm/ft | 5.5 W/ft | 14.8 ft | 0.31 x 0.05 in | 012154 |
| 2700K | | 609.8 lm/ft | 4.6 W/ft | 14.8 ft | 0.31 x 0.05 in | 012155 |
| 3000K | | 609.8 lm/ft | 4.6 W/ft | 14.8 ft | 0.31 x 0.05 in | 012156 |
| 4000K | | 609.8 lm/ft | 4.1 W/ft | 14.8 ft | 0.31 x 0.05 in | 012157 |
| 6500K | | 609.8 lm/ft | 4.1 W/ft | 14.8 ft | 0.31 x 0.05 in | 012158 |
OrgaLED PCB Photon 3000
| Temperature | Color | Output | Wattage | Run Length | Dimension | Part Number |
|---|---|---|---|---|---|---|
| 2000K | | 762.2 lm/ft | 8.8 W/ft | 9.8 ft | 0.31 x 0.05 in | 012159 |
| 2400K | | 914.6 lm/ft | 8.8 W/ft | 9.8 ft | 0.31 x 0.05 in | 012160 |
| 2700K | | 914.6 lm/ft | 7.2 W/ft | 9.8 ft | 0.31 x 0.05 in | 012161 |
| 3000K | | 914.6 lm/ft | 7.2 W/ft | 9.8 ft | 0.31 x 0.05 in | 012162 |
| 4000K | | 914.6 lm/ft | 6.6 W/ft | 9.8 ft | 0.31 x 0.05 in | 012163 |
| 6500K | | 914.6 lm/ft | 6.6 W/ft | 9.8 ft | 0.31 x 0.05 in | 012164 |
OrgaLED PCB Photon 4000
| Temperature | Color | Output | Wattage | Run Length | Dimension | Part Number |
|---|---|---|---|---|---|---|
| 2700K | | 1143.3 lm/ft | 8.8 W/ft | 9.8 ft | 0.31 x 0.05 in | 012167 |
| 3000K | | 1143.3 lm/ft | 8.8 W/ft | 9.8 ft | 0.31 x 0.05 in | 012168 |
| 4000K | | 1173.8 lm/ft | 8.8 W/ft | 9.8 ft | 0.31 x 0.05 in | 012169 |
| 6500K | | 914.6 lm/ft | 8.8 W/ft | 9.8 ft | 0.31 x 0.05 in | 012170 |
Accessories
PCB OrgaLED® offers IP20 a range of conenctions.
Power Supplies
24V DC; 0-10V and Magnetic Power Supplies options ranging from 25W-300W.
Mounting & Extrusions
Mounts directly with brackets, self adhesive transparent channels, or in aluminum extrusions.
