Marker Lights

Marker Lights are designed to create spots of accent lighting.

A low energy OrgaLED® strip is encapsulated in a cast polyurethane resin for maximum protection, within epoxy coated 316 stainless steel bodies with IP68 connectors, creating diffused spots of light suitable for pedestrian or light traffic streetscapes, or drive over applications up to 3,000lbs for the small diameter models.

The non-slip surface adds to their multiple purpose capability. White, RGB color changing or mono colors are available in three different sizes, including square and round.

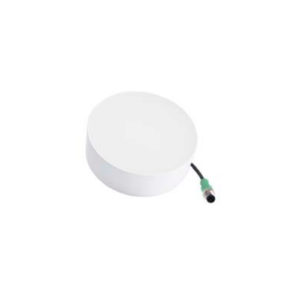

Marker Light Round

Features

  • IP68
  • Light vehicle drive-over applications
  • Available in two round dimensions (3″ and 5.5″ OD)
  • Three lumen intensities (Deco 0.3W, Power 1.3W, High Power 2.89W)
  • Available Colors: 2400K, 2700K, 3000K, 4000K, 6500K, Red, Green, Blue, Amber, and RGB

Marker Light Square

Features

  • IP68
  • Light vehicle drive-over applications
  • Available in two square dimensions (Square 2.75″ and 4.6″)
  • Three lumen intensities (Deco 0.3W, Power 1.3W, High Power 2.89W)
  • Available Colors: 2400K, 2700K, 3000K, 4000K, 6500K, Red, Green, Blue, Amber and RGB

Round Marker Lights

TypeTemperatureDecoPowerHigh Power
Round Small 3"w x 3"h
2400K013198013216013217
2700K013199013208013212
3000K013200013209013213
4000K013206013210013214
6500K013205013211013215
RGB013201
Amber013201
Red013202
Green013203
Blue013204
Round Large 5.5"w x 3"h
2400K013218013236013237
2700K013219013228013232
3000K013220013229013233
4000K013226013230013234
6500K013225013231013235
RGB013227
Amber013221
Red013222
Green013223
Blue013224
Green013223
Blue013224

Square Marker Lights

TypeTemperatureDecoPowerHigh Power
Square Small 2.75"w x 3"h
2400K013238013256013257
2700K013248013248013252
3000K013240013249013253
4000K013246013250013254
6500K013245013251013255
RGB013247
Amber013241
Red013242
Green013243
Blue013244
Square Large 4.6"w x 3"h
2400K013258013276013277
2700K013259013268013272
3000K0132600132296013273
4000K013266013270013274
6500K013265013271013275
RGB013267
Amber013261
Red013262
Green013223
Blue013224
Green013263
Blue013264

Accessories

OrgaLED® Diffuse offers a range of Mirror Welded IP69 connections to suit your every need.

Connectors & Extensions

Power Supplies

24V DC; 0-10V and Magnetic Power Supplies with options ranging from 25W-300W.

0-10V

Magnetic 0-10V
