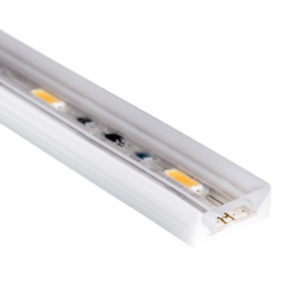

OrgaLED Top

liniled strip top horiz

The OrgaLED® Top LED strip is a high-quality, flexible LED strip with a unique co-extrusion technology. The combination of high quality and exceptional flexibility, allows for an endless range of indoor and outdoor applications. Available in various luminous intensities and colors.

The OrgaLED® Top LED strips can be pre-assembled with the mirror welded connector (11290) for an instant waterproof (IP68 submersible) usage. In addition, the LED strips can be connected with the OrgaLED® Top Connector Set (IP40) or in combination with factory weatherproof solder (011508) for an IP67 solution.

Document Library

OrgaLED Top

SpecsDecoPowerHigh PowerPhotonTunable WhiteRGB
Power Rating0.33 - 1.34 W/ft1.25 - 2.5 W/ft2.5 - 2.7 W/ft2.4 - 3.2 W/ft3.2 W/ft1.4 - 2.2 W/ft
Light Output7.9 - 37.5 lm/ft18.6 - 129 lm/ft188 - 216 lm/ft247 - 311 lm/ft255 lm/ft42 - 63 lm/ft
Efficiency9 - 103 lm/W9 - 104 lm/W70 - 83 lm/W77 - 124 lm/W80 lm/W28 - 29 lm/W
Beam Angle110110110110110110
Max Run Length66 ft33 ft33 ft29.5 ft29.5 ft16 - 33 ft
Deco ProductsPower ProductsHigh Power ProductsPhoton ProductsTunable White ProductsRGB Products

New OrgaLED Top (coming soon)

Deco | Power | High Power

  • 24V DC – Low Voltage, Class 2
  • Very Flexible (Bend Radius >1.2in)
  • High Efficacy
  • High Density
  • Up to 33ft Continuous Runs
  • 27K, 30K, 35K, 40K, 50K
  • Field Cuttable 1.96in
  • 8 LED per Cuttable Section
  • IP40; IP67 We Location
  • UL Listed / CE / ROHS
Specification Sheet
