OrgaLED® Standard Mounting

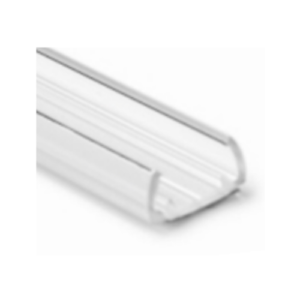

PET Channel

Features

  • PET Channel is self adhesive as internal grooves allow for a flat head screw
  • 39″ length is cuttable
  • Available in Clear or White
  • 0.5″W or 0.75″W options

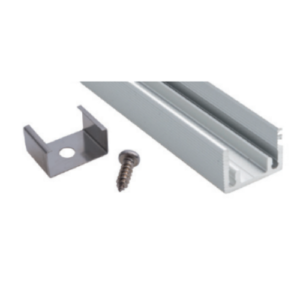

Aluminum Channel & Clip

Features

  • Aluminum channel with internal grooves allow for a flat head screw
  • 39″ length is cuttable
  • Clip available for easy installation and/or removal, sold separately
  • OrgaLED Top will sit flush in the channel

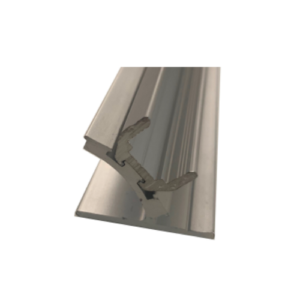

Angled Channel

Features

  • Angled Extrusions sits in a 90º corner
  • OrgaLED Top will sit flush in the channel
  • The insert options for 35º, 45º, and 68º angles, sold separately
  • Can be mounted with 3M adhesive or drilled in to surface
  • Sold per foot

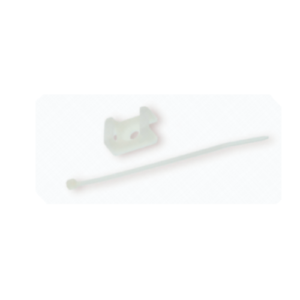

Mounting Saddle

Features

  • Nylon Saddles intended for curved surfaces
  • Includes screw and tie wrap
  • Package includes 25 count

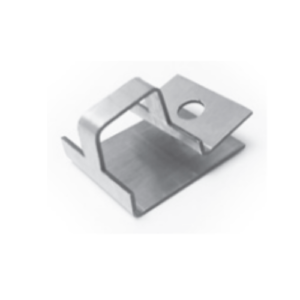

Stainless Steel Clip

Features

  • Stainless Steel clip available for OrgaLED Top or Side
  • Clip wraps around OrgaLED® strip for a secure
  • 16-18″ spacing recommended

OrgaLED Standard Mounting

DescriptionPart Number
PET White Mounting Channel, L39", 0.5"W011368
PET Clear Mounting Channel, L39", 0.5"W011369
PET Clear Mounting Channel, L39", 0.75"W011370
PET White Mounting Channel, L39", 0.75"W011372
Aluminum Mounting Channel, L39", 0.5"W (clip not included)012851
Clip for Aluminum Mounting Channel012850
Angled Aluminum Extrusion (insert not included)011365
Standard Insert for Angled Extrusion011584
Narrow Insert for Angled Extrusion011588
Asymmetric Insert for Angled Extrusion011586
Mounting Saddles, 25pk011375
Stainless Steel Top Clip011378
Stainless Steel Side Clip011373

Required Components

OrgaLED LED Strips

SpecsDiffuse; Top or SideTopSidePCB
LED Strip DiffuseLED Strip Side
RatingIP68; IP69IP40; IP67; IP68IP40; IP67; IP68IP20
ApplicationOutdoor, submersible

Outdoor, Waterproof, Top Bending

Outdoor, Waterproof, Side Bending

Indoor, small spaces
Notes

Mounts in polycarbonate channel or extrusion, Diffused LEDs

IP67 /IP68 with optional waterproofing. Needs extrusion with lens to diffuse light.

IP67 /IP68 with optional waterproofing. Directional light 55 degree beam.

Needs extrusion to diffuse light.
Beam AngleSymmetric 110 DegreeSymmetric 110 DegreeAsymmetric 55 Degree
Diffuse StripsTop StripsSide StripsPCB Strips
