Features
- Aluminum Extrusion, anodized
- Symmetric, Asymmetric, and Narrow light throw
- Two piece extrusion with a channel for OrgaLED
- The back extrusion separates for mounting on the wall or surface with screws
- The front decorative extrusion press-clicks into place to conceal the screws
- Sold per foot, 6’6″ standard lengths
- Polycarbonate lens available
- Mitered corners available
- Anodized, White or Black powder coat finish
Downloads

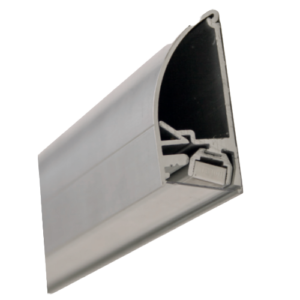

Cove Extrusion
| Cove Extrusion Type | Image | Description | Part Number |
|---|---|---|---|
| Standard |  | ||
| Cove Extrusion, includes backing and raceway cover | 011575 | ||
| Cove Insert, Standard light throw | 011584 | ||
| Cove lens for standard light throw | 011585 | ||
| Cove Left End Cap, for Standard light throw | 011572S | ||
| Cove Left End Cap, for Standard light throw | 011574S | ||
| Asymmetric |  | ||
| Cove Extrusion, includes backing and raceway cover | 011575 | ||
| Cove Insert, Asymmetric light throw | 011586 | ||
| Cove Lens for Asymmetric light throw | 011587 | ||
| Cove Left End Cap for Asymmetric light throw | 011572A | ||
| Cove Left End Cap for Asymmetric light throw | 011574A | ||
| Narrow |  | ||
| Cove Extrusion, includes backing and raceway cover | 011575 | ||
| Cove Insert, Narrow light throw | 011588 | ||
| Cove Lens for Narrow light throw | 011589 | ||
| Cove Left End Cap for Narrow light throw | 011572N | ||
| Cove Left End Cap for Narrow light throw | 011574N |
Required Components
OrgaLED LED Strips
| Specs | Diffuse; Top or Side | Top | Side | PCB |
|---|---|---|---|---|
 |  |  |  | |
| Rating | IP68; IP69 | IP40; IP67; IP68 | IP40; IP67; IP68 | IP20 |
| Application | Outdoor, submersible | Outdoor, Waterproof, Top Bending | Outdoor, Waterproof, Side Bending | Indoor, small spaces |
| Notes | Mounts in polycarbonate channel or extrusion, Diffused LEDs | IP67 /IP68 with optional waterproofing. Needs extrusion with lens to diffuse light. | IP67 /IP68 with optional waterproofing. Directional light 55 degree beam. | Needs extrusion to diffuse light. |
| Beam Angle | Symmetric 110 Degree | Symmetric 110 Degree | Asymmetric 55 Degree | |
| Diffuse Strips | Top Strips | Side Strips | PCB Strips |
