Features
- Can be used with OrgaLED PCB or Top LED strips, AC LED, or Aqueon
- Color Temperatures: 2400K, 2700K, 3000K, 4000K, 6500K, Red, Green, Blue, Amber, RGB
- Life >50,000 hours (LM79)
- Choice of integral Universal Voltage (120-277V), electric driver or integral 347V electronic drivers – in either Non-Dim or 0-10v / 10% Dimming
- Optional emergency battery pack available
- Anodized aluminum or polyester powder coat in black or white. Custom colors at added cost
Downloads
OrgaLED Array Plus
| Description | Part Number |
|---|---|

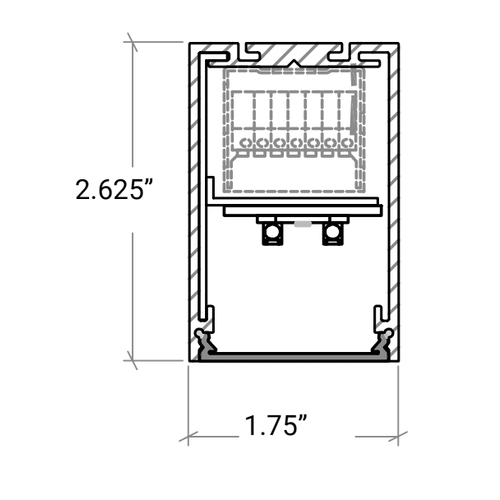

| Array Plus Extrusion | 010990 |

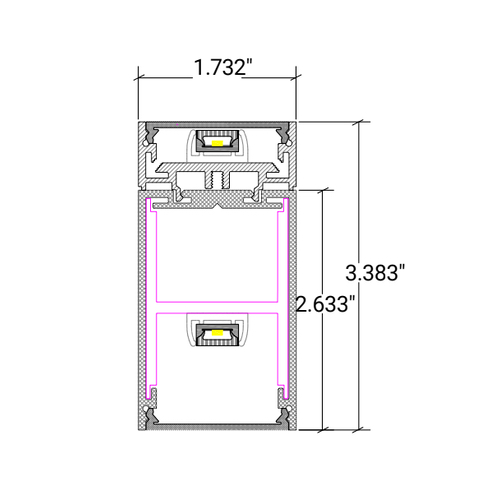

| Array Plus Small Extrusion Indirect/Direct | 010992 |
| Array Plus Extrusion Cover | 010994 |
| Array Plus Direct Pendant Clip | 010995 |
| Array Plus End Cap | 010996 |
| Array Plus Indirect Pendant Clip | 010997 |
| Low Voltage Suspension Cable | KLVC242 |
Required Components
OrgaLED LED Strips
| Specs | Top | Side | PCB | Diffuse | Wallwash |
|---|---|---|---|---|---|
 |  |  |  |  | |
| Rating | IP40/ IP67 | IP40/ IP67 | IP20 | IP68 | IP40/ IP67 |
| Application | Outdoor, Waterproof, Top Bending | Outdoor, Waterproof, Side Bending | Indoor, small spaces | Outdoor, submersible | Outdoor / Indoor, Wallwashing |
| Notes | IP40 /IP67 with optional IP67 Waterproofing Kit. Slide-fed LED application. | Due to the built-in reflection, an optimal light effect from the side is guaranteed | For indoor use only. | Ideal for diffused direct view | Flexible LED Wallwasher Tape Light |
| Beam Angle | Symmetric 110˚ | 75˚, 55˚ | 120˚ | 55˚ | 15˚, 30˚, 45˚ |
| Top Strips | Side Strips | PCB Strips | Diffuse Strips | Wallwash Strips |
AC LED Strip 2W/Ft
AC LED strip features Driver-less AC LED in runs up to 112ft without an additional power source or driver to conceal. The PVC co-extrusion is UV and chemical resistant and installed in a channel or with mounting clips. AC LED 2W/Ft can be specified from 1 - 112ft max run lengths. Specify run lengths for factory power lead connection and length of connecting cord.
| Temperature | Color | CRI | lm/ft | W/ft | Bin | Part Number |
|---|---|---|---|---|---|---|
| 2700K |  | 90+ | 160 | 2 | +-50 | 037021 |
| 3000K |  | 90+ | 160 | 2 | +-50 | 037023 |
| 3500K |  | 90+ | 160 | 2 | +-50 | 037025 |
| 4000K | | 90+ | 160 | 2 | +-50 | 037027 |
| 5000K |  | 90+ | 160 | 2 | +-50 | 037029 |
AC LED Strip 4W/Ft
AC LEDstrip features Driver-less AC LED in runs up to 112ft without an additional power source or driver to conceal. The PVC co-extrusion is UV and chemical resistant and installed in a channel or with mounting clips. AC LED 4W/Ft can be specified from 1 - 66ft max run lengths. Specify run lengths for factory power lead connection and length of connecting cord.
| Temperature | Color | CRI | lm/ft | W/ft | Bin | Part Number |
|---|---|---|---|---|---|---|
| 2700K | | 90+ | 320 | 4 | +-50 | 036022 |
| 3000K | | 90+ | 320 | 4 | +-50 | 036024 |
| 3500K | | 90+ | 320 | 4 | +-50 | 036026 |
| 4000K | | 90+ | 320 | 4 | +-50 | 036028 |
| 5000K | | 90+ | 320 | 4 | +-50 | 036030 |
